3D Models / W124 Speaker Adapters

W124 Speaker Adapters

Made for: Mercedes-Benz W124

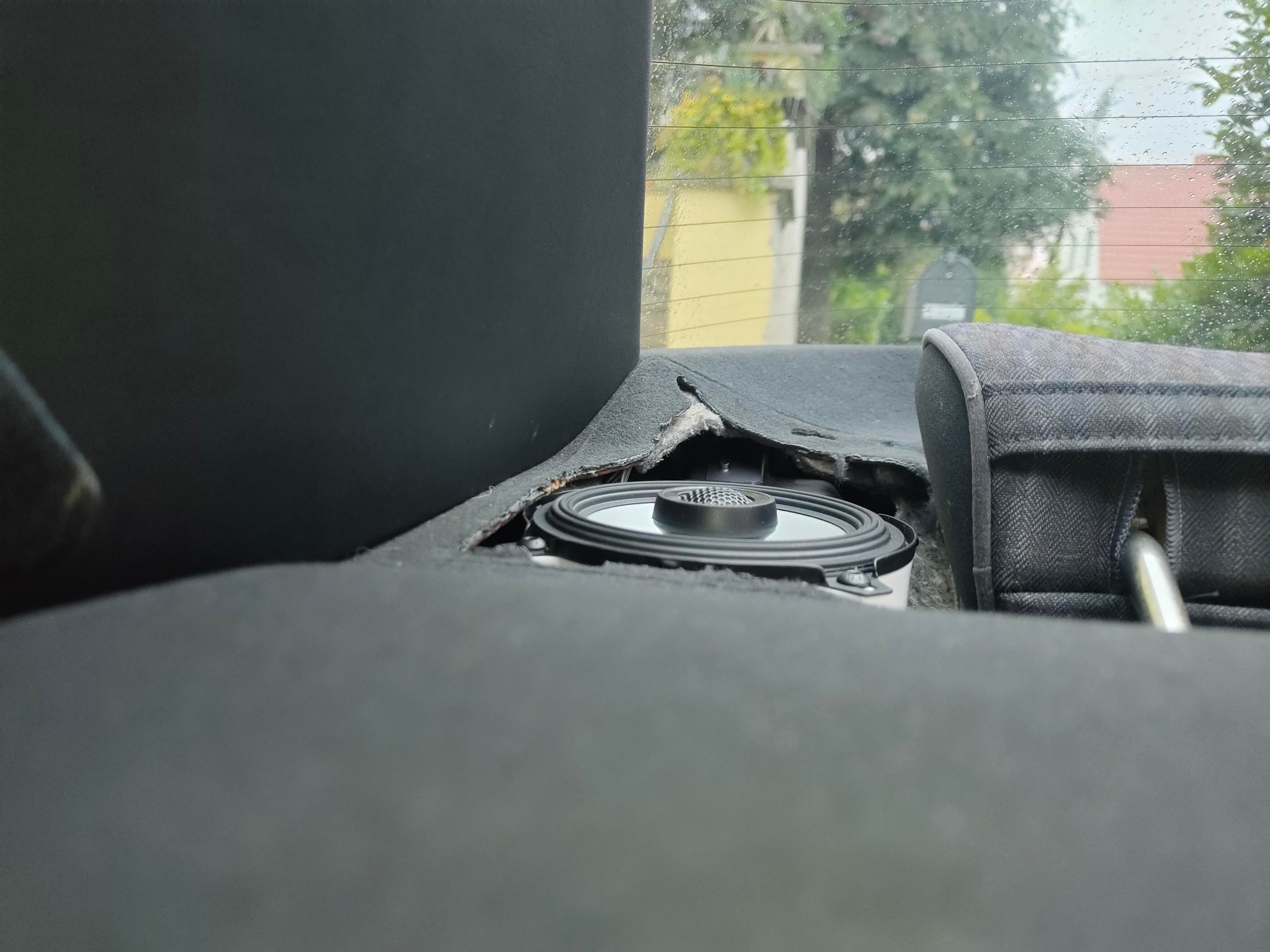

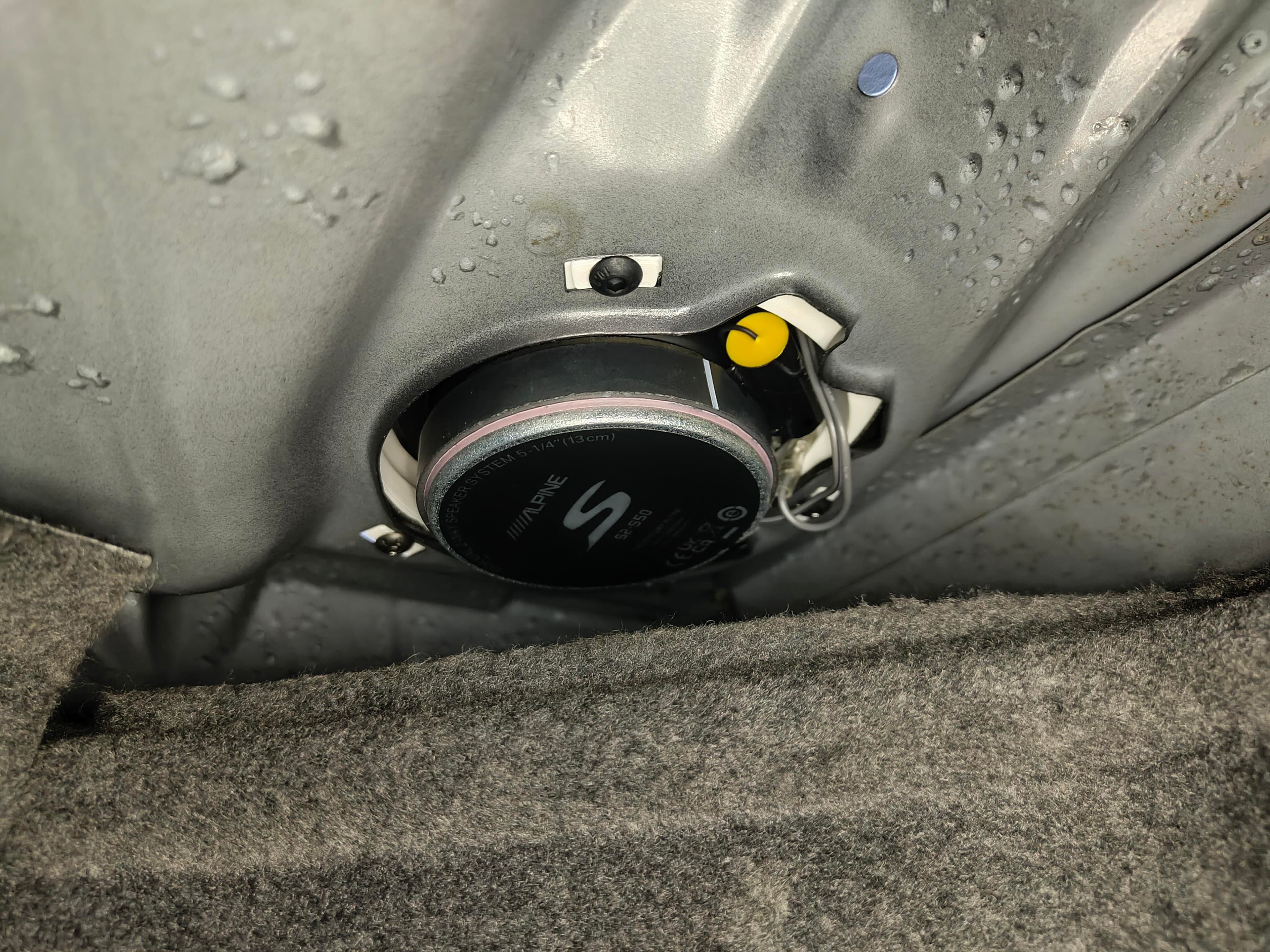

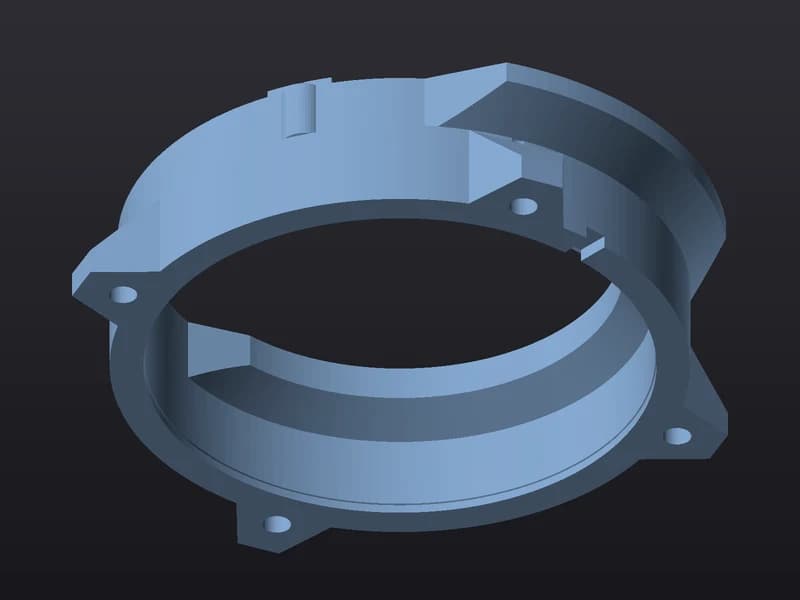

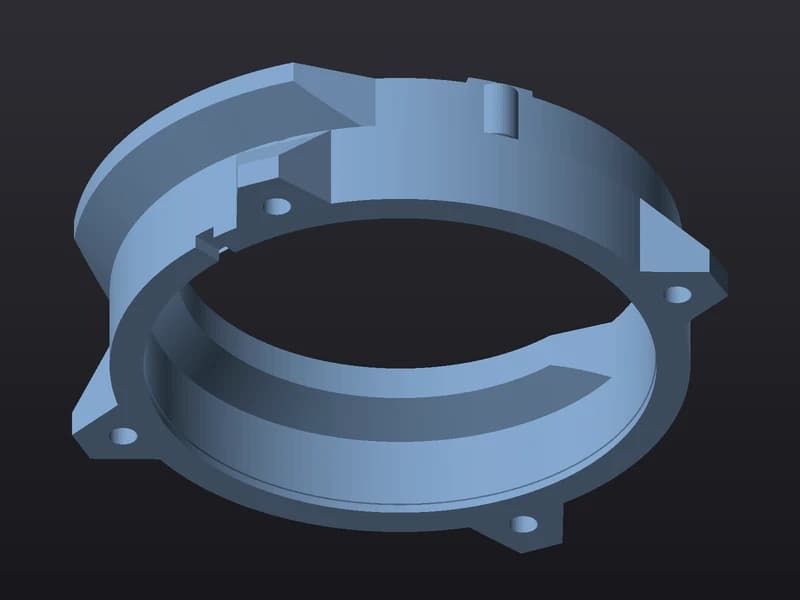

3D printable speaker adapter rings for the Mercedes-Benz W124. Comes as a matching pair: one part for the left side and a mirrored part for the right side. The Adapters are designed to use with "Ruthex RX-M5x9,5" heat set inserts. (6.4mm Hole Diameter) You will need some thin foam sticky tape. Designed for Alpine S2-S50 speakers. According to users it's also compatible with: JBL Stage 3 130mm

Download Size:0.46 MB
Downloads:6
Category:Speaker Adapters

Included in the download (2 files)

  • Left side (w124-speaker-adapter-left.stl)0.23 MB
  • Right side (w124-speaker-adapter-right.stl)0.23 MB
W124SpeakerAudio

💡 Printing Tips

  • Recommended: PETG, ABS or other temp resistant filament
  • Layer height: 0.15mm - 0.3mm
  • Infill: 20-30% is sufficient
  • At least 3 Perimeters
  • No support needed, when placed on speaker side
